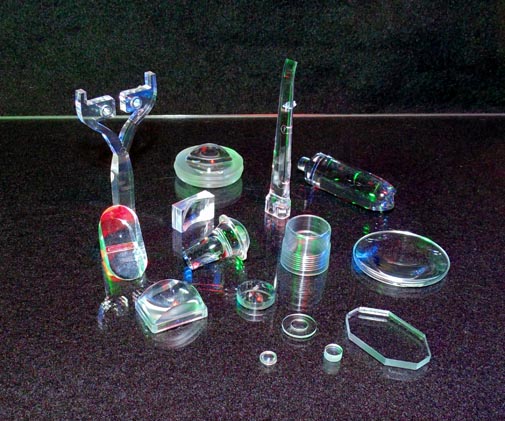

Plastic Optics & Coatings
Turn to us when your project calls for high volume, low cost Plastic Optics . Our Precision Plastic Optics are used for a variety of Optic & Opto-Electronic applications including Sensing, Imaging, Scanning, Detecting.
When you're looking for the quality of Glass with the savings of Plastic , call us with your specific requirement. We can help you get started from Prototyping all the way to High Volume Production.
Product Offerings:
Plastic Aspheric Lenses (Paraboloid, Hyperboloid, Ellipsoidal)
Plastic Spherical Lenses
Plastic Collimating Lenses
Plastic Diffractive Optics
Plastic Fresnel Lenses
Plastic Cylindrical Lenses
Plastic Windows
Plastic Optical Cast
General Specifications:
Size:
3 to 50mm
Mechanical Tol:
0.03mm<30mm dia
0.05mm<50mm dia
Optical Tol:
0.002 to 3mm (3mm Dia)
Plastic Materials Used:
Acrylic, Polycarbonate (PMMA), Polystrene
Coatings:
SiO, MgF2, ZnS, Aluminum, Silver, Dielectric, Single Layer, Multi Layer
Testing:
Collimator, Interferometer, Form Talsurf
Stock Plastic Lens List
Following is a partial list of stock plastic components. Please contact us for more detailed and updated information.
Part No.
Dimension:
Focal Length:
Material:
Shape:
Form:
Download Drawing:
SPL101
Dia. 3.0mm
3.0mm
Acrylic
PL/CX
Spherical
SPL102
Dia. 4.5mm
3.85mm
Acrylic
PL/CX
Aspheric
SPL103
Dia. 5x8mm(L)Rod
Acrylic
SPL104
Dia. 5.3mm
8.15mm
Acrylic
BI/CX
Spherical
ZMX
SPL105
Dia. 5.6mm
4.87mm
Acrylic
BI/CX
Spherical
ZMX
SPL106
Dia. 5.6mm
4.87mm
Acrylic
BI/CX
Aspheric
ZMX
SPL107
Dia. 7.5mm
8.5mm
Acrylic
BI/CX
Spherical
ZMX
SPL108
Dia. 9.0mm
9.0mm
Acrylic
PL/CX
Spherical
ZMX
SPL109
Dia. 9.0mm
20.0mm
Acrylic
PL/CX
Spherical
ZMX
SPL110
Dia. 11.40mm
18.0mm
Acrylic
BI/CX
Aspheric
ZMX
SPL111
10mmx10mm
-10.0mm
Acrylic
Cylindrical
SPL112
10.08x8mm
17.85mm
Acrylic
Rectangular
SPL113
Dia. 12.5mm
25.0mm
Acrylic
BI/CX
Spherical
ZMX
SPL114
Dia. 14mm
14mm
Acrylic
BI/CX
Spherical
ZMX
SPL115
Dia. 15mm
12mm
Acrylic
BI/CX
Aspheric
ZMX
SPL116
Dia. 15mm
17.46mm
Acrylic
BI/CX
Spherical
ZMX
SPL117
Dia. 15.1mm
29.85mm
Acrylic
PL/CX
Spherical
ZMX
SPL118
Dia. 16mm
20.0mm
Acrylic
BI/CX
Spherical
ZMX
SPL119
Dia. 16.5mm
52.0mm
Acrylic
BI/CX
Spherical
ZMX
SPL120
Dia. 18mm
17.12mm
Acrylic
BI/CX
Spherical
ZMX
SPL121
Dia. 18mm
27.00mm
Acrylic
BI/CX
Spherical
ZMX
SPL122
Dia. 18mm
24.76mm
Acrylic
PL/CX
Spherical
SPL123
Dia. 22mm
32.92mm
Acrylic
PL/CX
Spherical
ZMX
SPL124
Dia. 22mm
34.8mm
Acrylic
BI/CX
Spherical
ZMX
SPL125
Dia. 25.1mm
42.3mm
Acrylic
BI/CX
Spherical
ZMX
SPL126
Dia. 27.0mm
42.0mm
Acrylic
BI/CX
Spherical
ZMX
SPL127
Dia. 30.00mm
30.00mm
Acrylic
BI/CX
Spherical
ZMX
SPL128
Dia. 32mm
70.00mm
Acrylic
BI/CX
Spherical
ZMX
SPL129
Dia. 32mm
80.00mm
Acrylic
PL/CC
Spherical
SPL130
Dia. 34.0mm
-51.0mm
Acrylic
CX/CC
Aspheric
ZMX
SPL131
35mmx19mm
28.0mm
Acrylic
Cylindrical
SPL132
Dia. 48.0mm
-44.0mm
Acrylic
CX/CC
Aspheric
ZMX
SPL133
Dia. 64.0mm
-91.0mm
Acrylic
CX/CC
Aspheric
ZMX
