AL15-BK7 Plano-Convex Cylindrical Lenses
| Material: | BK7 grade A optical glass |  |
| Design Wavelength: | 587.6nm | |
| Diameter Tolerance: | +0.0/-0.2mm | |
| Focal Length Tolerance: | +2% | |
| Center Tolerance | 5~15 arc minutes | |
| Clear Aperture: | 90% | |
| Surface Quality: | 60-40 scratch-dig | |
| Bevel: | 0.2mmX45o | |
| Coatings: | without coating |
| (mm) | ||||||

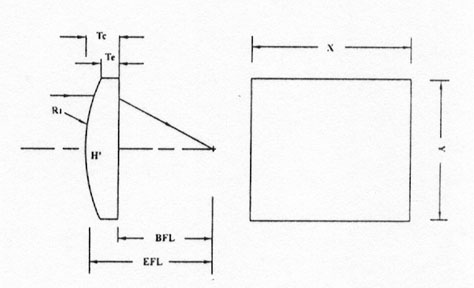

| Catalog No. | XxY | EFL | BFL | R1 | Tc | Te |
| AL15-010-012 | 10x10 | 12.7 | 9.862 | 6.56 | 4.31 | 2.0 |
| AL15-010-020 | 10x10 | 20 | 17.835 | 10.33 | 3.29 | 2.0 |
| AL15-010-025 | 10x10 | 25 | 23.016 | 12.92 | 3.01 | 2.0 |
| AL15-020-012 | 20x10 | 12.7 | 9.862 | 6.56 | 4.31 | 2.0 |
| AL15-020-020 | 20x10 | 20 | 17.835 | 10.33 | 3.29 | 2.0 |
| AL15-020-025 | 20x10 | 25 | 23.02 | 12.91 | 3.01 | 2.0 |
| AL15-020-020 | 20x20 | 50 | 47.352 | 25.82 | 4.02 | 2.0 |
| AL15-020-075 | 20x20 | 75 | 72.822 | 38.73 | 3.31 | 2.0 |
| AL15-020-010 | 20x20 | 100 | 97.381 | 51.64 | 3.98 | 3.0 |
| AL15-020-150 | 20x20 | 150 | 147.602 | 77.46 | 3.65 | 3.0 |
| AL15-020-200 | 20x20 | 200 | 197.710 | 103.28 | 3.49 | 3.0 |
| AL15-020-250 | 20x20 | 150 | 247.76 | 129.09 | 3.39 | 3.0 |
| AL15-020-300 | 20x20 | 300 | 297.76 | 154.91 | 3.32 | 3.0 |
| AL15-020-500 | 20x20 | 500 | 497.887 | 258.18 | 3.19 | 3.0 |
| AL15-020-1000 | 20x20 | 1000 | 998.207 | 516.5 | 3.10 | 3.0 |
| AL15-040-050 | 40x20 | 50 | 47.352 | 25.82 | 4.02 | 2.0 |
| AL15-040-075 | 40x20 | 75 | 72.822 | 38.73 | 3.31 | 2.0 |
| AL15-040-100 | 40x20 | 100 | 97.381 | 51.64 | 3.98 | 3.0 |
| AL15-040-150 | 40x20 | 150 | 147.602 | 77.46 | 3.65 | 3.0 |
| AL15-040-200 | 40x20 | 200 | 297.691 | 103.28 | 3.49 | 3.0 |
| AL15-040-250 | 40x20 | 250 | 247.76 | 129.09 | 3.39 | 3.0 |
| AL15-040-300 | 40x20 | 300 | 297.809 | 154.91 | 3.32 | 3.0 |
| AL15-040-500 | 40x20 | 500 | 497.887 | 258.18 | 3.19 | 3.0 |
| AL15-040-1000 | 40x20 | 1000 | 998.207 | 516.5 | 3.10 | 3.0 |
